TTA (Tested for IEC 61439 1&2)

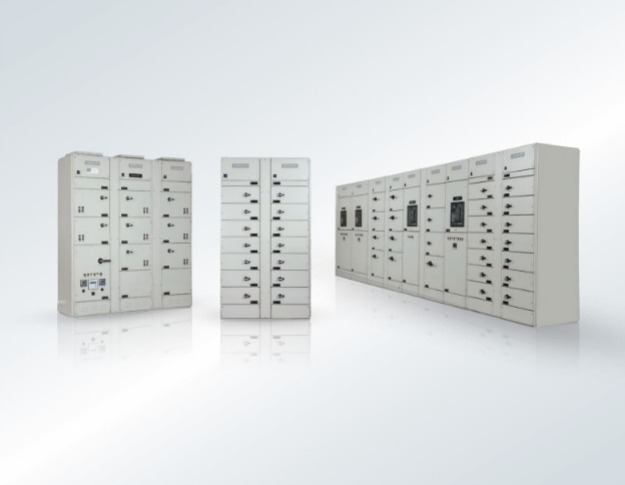

SIEPAN 8PU – Range & dimensions at a glance
Siemens 8PU design for low voltage switchboards has
become an industry benchmark with proven performance
for the past many decades.
Designed to operate in challenging conditions of high
ambient & dust 8PU low voltage switchboards have been
patronized by various segments like cement, steel, refinery,
oil & gas, pharma, F&B, data centres, hospitals & hotels,
metro-rail projects having deployed more than 100,000 LV
switchboards for maximum reliability and performance.
This proven technology from Siemens for SIEPAN 8PU®
LV Switchboards is now also available through a network of
Licensed Partners across the country.
Customer benefits at a glance:
Highlights:
Range:
Brand and Technology nameplates
SIEPAN 8PU LV switchboards manufactured by licensed
partners come with brand and technology nameplates
affixed to the switchboards qualifying them for top class
design innovation from Siemens.
The licensed partners for SIEPAN 8PU are authorized to canvas the technology tie-up with Siemens differentiating their offering on quality and reliability.
LV switchboard SIEPAN 8PU:
Technical Data
SIVACON S8 – system overview
| Circuit breaker design | Universal mounting design | Fixed mounting design |
Installation designs | Fixed-mounted design Withdrawable design | Withdrawable unit design Fixed-mounted design with compartment doors Plug-in design | Fixed-mounted design with front covers |
Functions | Supply Feeder Coupling | Cable feeders Motor outgoing feeders (MCC | Cable feeders |
Rated current In | up to 6,300 A | up to 630 A up to 250 kW | up to 630 A |
Connection position | front or rear | front or rear | front |
Section width (mm) | 400 • 600 • 800 • 1,000 • 1,400 | 600 • 1,000 • 1,200 | 1,000 • 1,200 |
Internal separation | Form 1, 2b, 3a, 4b, 4 Type 7 (BS) | Form 3b, 4a, 4b, 4 Type 7 (BS) | Form 1, 2b, 3b, 4a, 4b |
Busbar position | rear/top | rear/top | rear/top |
Type tests:
Special test:
Routine tests:
TI
Be it an Industry or Infrastructure project, challenges such as sustained cost pressures, shorter project cycles and competitive advantages demand the most cost-effective solution in every aspect and stage of any project.
To meet this growing need, L&T Electrical & Automation offers Safe, Reliable and Compact Main Power Distribution Switchboards that help to manage electrical power distribution with higher safety and reliability.
Designed for safe power distribution up to 5000A, we offer fully tested panels according to IEC61439 standard with ingress protection - up to IP54 that ensures best-in-class safety of people and assets.
Built on owned distribution components - switchgear and busbar - the Ti solution fulfills every demanding need of protection, switching, measuring, and monitoring of power distribution while ensuring the availability of reliable power.
The range is available in both, aluminum and copper busbars, providing flexibility of selection to end-users. The engineered solution not only helps you to utilize your available space effectively but also minimizes the cost of manufacturing, engineering, assembly and installation.
Expandable as well as Modular in-nature, the solution helps you to reduce your project cycle time and cost.
Enersys
The Enersys range of Main Distribution Board (MDB) is the perfect solution to meet the increasing demands of commercial and residential complexes, educational institutes, hospitals, buildings and manufacturing operations which require safe, reliable and high-performance protection to their electrical power distribution system.
Available up to 4000A Cu/Al and short-circuits current up to 80kA, the MDB allows the system to ensure an absolute uninterrupted power supply from the main supply intake to the point of use. The modular and compact design of boards not just ensures quick installation but also helps to make effective use of your capital and space.
The boards are designed as per the latest IEC 61439-1&2 standards, tested in highly reputed international labs. Backed by many years of knowledge and switchgear design experience, our MDBs ensure efficient distribution and control of electrical energy in yours buildings.
With complete closed-door operation and limitation of fault within a confined area, Enersys offers total safety for the operator and maintenance personnel as well as plant safety in order to limit the damage.
